| 系列标题 | 功率 (W) | 输入电压 (VDC) |
输出电压 (VDC) |
输出路数 | 隔离电压 (VDC) |
封装形式 | 封装尺寸 (mm) |
|
| SDR-960 | 960 | 180~264VAC/254-370VDC | 24,48 | 1 | 3000VAC | 导轨 | 110*125.2*150 | |
| SDR-480 | 480 | 90~264VAC/127-370VDC | 24,48 | 1 | 3000VAC | 导轨 | 85.5*125.2*128.5 | |

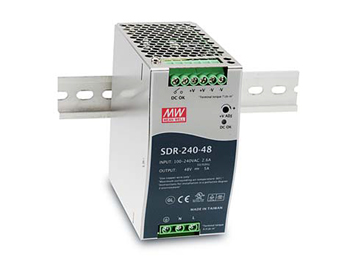

| SDR-240 | 240 | 85~264VAC/124-370VDC | 24,48 | 1 | 3000VAC | 导轨 | 63*125.2*113.5 | |
| SDR-120 | 120 | 85~264VAC/124-370VDC | 12,24,48 | 1 | 3000VAC | 导轨 | 40*125.2*113.5 | |
| SDR-75 | 75 | 85~264VAC/124-370VDC | 12,24,48 | 1 | 3000VAC | 导轨 | 32*125.2*102 |
